Description
Multifunctional Manual Home Care Bed, model DH2A43FJ, is designed to support the daily care of elderly people, patients, and individuals with limited mobility at home or in care facilities. The bed combines backrest elevation, adjustable leg positioning, lateral patient turning, commode access, and hair and foot washing functions. It is operated manually using independent adjustment cranks and does not require electricity. The bed also features a cold-rolled steel frame, protective side rails, mobility castors, a sectional mattress, an overbed table, and an IV pole, providing multiple patient care functions in one practical nursing bed.
Technical Specifications
- Product type: Multifunctional manual home care bed
- Brand: DAHOO
- Manufacturer: Dahao Medical
- Model: DH2A43FJ
- Country of origin: China
- Operating system: Manual operation using adjustment cranks
- Overall bed length: 2100 ± 20 mm
- Overall bed width: 970 ± 20 mm
- Overall bed height: 490 ± 20 mm
- Sleeping platform length: 1900 ± 20 mm
- Sleeping platform width: 900 ± 20 mm
- Bed platform height above the floor: 490 ± 20 mm
- Maximum weight capacity: 175 kg
- Net weight: 78 kg
- Gross weight: 86 kg
- Frame material: A3 cold-rolled steel
- Frame surface treatment: White powder coating
- Backrest adjustment angle: Up to 80°
- Thigh section adjustment angle: Up to 40°
- Calf section adjustment angle: Up to 55°
- Lateral turning angle: Up to 40°
- Number of castors: 4 castors
- Castor size: 5 inches
- Packing dimensions: 203 × 96 × 26 cm
- Suitable for: Home care, nursing facilities, elderly care centres, and medical facilities
Manual Operation Without Electricity
The DAHOO Home Care Bed operates through a manual adjustment system using multiple cranks positioned around the bed frame. Each crank controls a specific function, including backrest elevation, leg section adjustment, lateral turning, and commode opening control.
The bed does not require electricity, motors, or batteries to operate. Its manual control system allows the available functions to be adjusted whenever required. The cranks are positioned near the foot and sides of the bed, giving the caregiver access to the different adjustment functions.

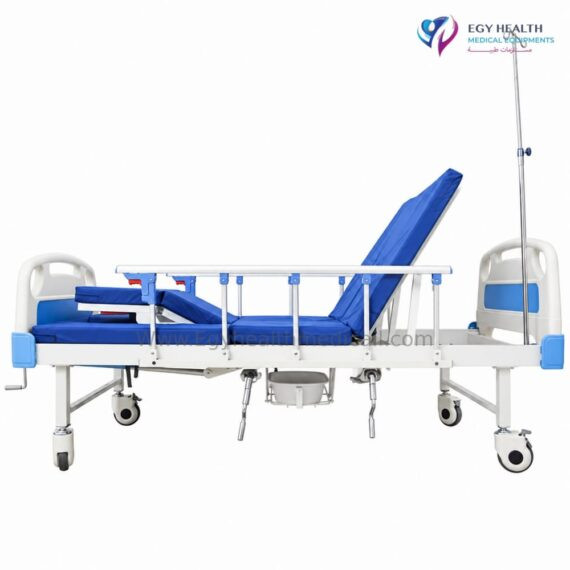

Backrest Adjustment up to 80 Degrees
The back section of the bed can be raised gradually to an angle of up to 80 degrees. This function changes the patient’s position from lying flat to a more upright seated position suitable for eating, reading, or communicating with others.
The backrest angle is adjusted using the dedicated manual crank and can be positioned at the required level. The sectional mattress moves with the adjustable back section to remain aligned with the bed platform during elevation and lowering.
Adjustable Thigh and Calf Sections
The bed includes adjustable sections to support the thighs and lower legs. The thigh section can be elevated to an angle of up to 40 degrees, while the calf section can be adjusted to an angle of up to 55 degrees.
These functions allow the position of the patient’s lower limbs to be changed according to the required bed configuration. Each section is adjusted gradually through the corresponding manual crank fitted into the bed frame.

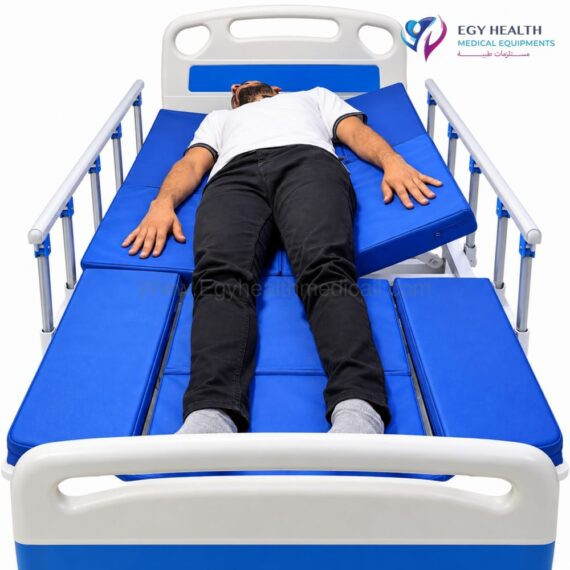

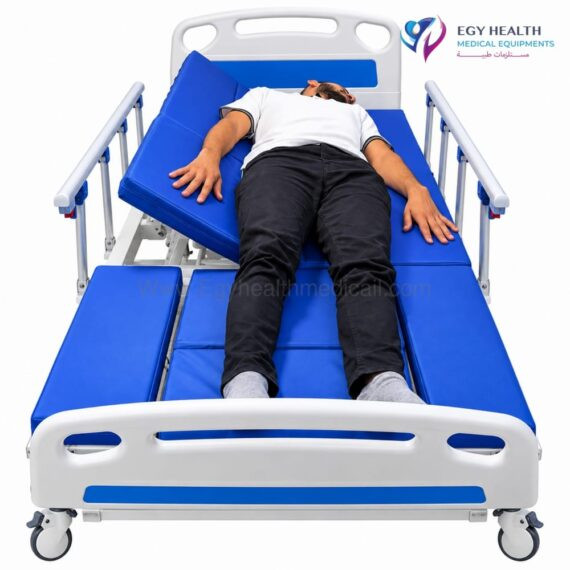

Lateral Patient Turning Function
The DAHOO DH2A43FJ provides a lateral turning function with an adjustment angle of up to 40 degrees. This function tilts the relevant sections of the mattress and sleeping platform towards the side, assisting the caregiver when changing the patient’s position, clothing, or bedding.
The turning function is operated using its dedicated manual crank. The sectional design of the bed platform and mattress moves with the lateral adjustment, while protective side rails are positioned on both sides of the bed.

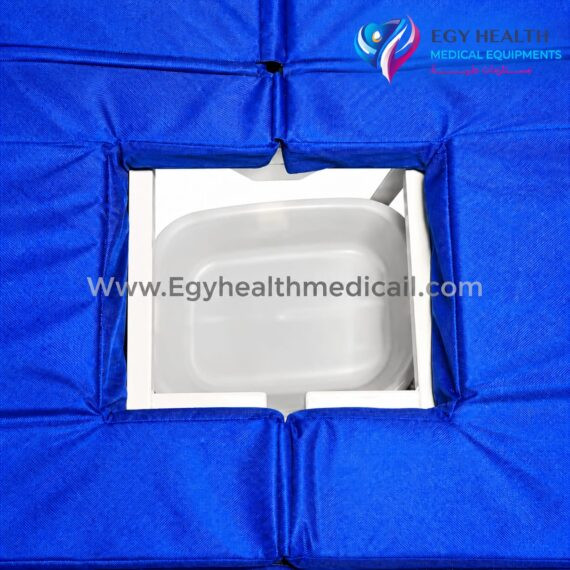

Integrated Commode Function
The bed is equipped with an integrated commode opening in the middle section of the sleeping platform, with a removable commode container positioned underneath. This function allows the patient to use the commode without leaving the bed.
The commode section can be opened and closed through its manual control mechanism. When the commode function is not being used, the central mattress section closes to restore the regular sleeping surface.

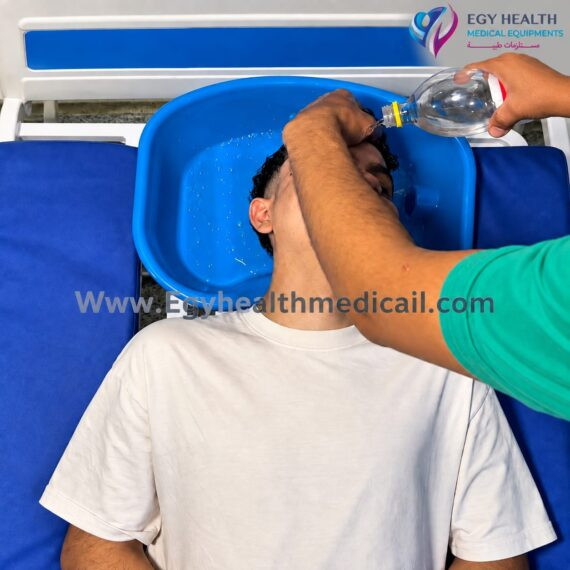

Hair Washing Function
The bed’s design supports hair washing while the patient remains in bed. A suitable washing basin can be positioned near the head section, allowing hair washing without moving the patient to another location.
This function works with the sectional mattress design. The head area can be prepared, and the washing basin can be placed in the designated position.

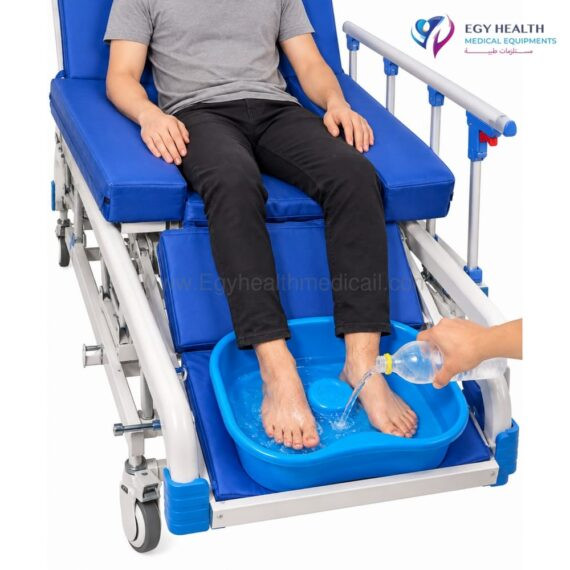

Foot Washing Function
A dedicated space is available for installing a foot-washing basin. The corresponding mattress section can be opened, and the basin can be placed within the prepared section of the bed frame.
This function allows the patient’s feet to be washed while they remain lying on the bed. It forms part of the bed’s multifunctional design for daily care and personal hygiene tasks.

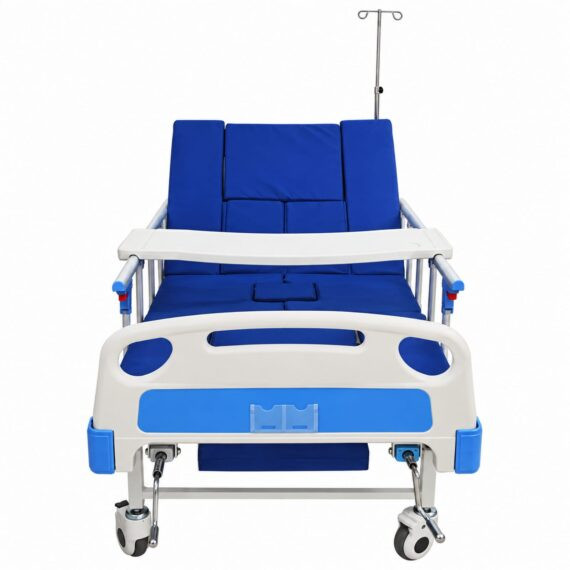

Removable Overbed Dining Table
The bed includes an overbed table that extends between the two side rails. It can be used for serving meals or holding the patient’s personal items when the backrest is raised to a seated position.
The table is mounted across the sides of the bed and can be removed when it is not required, leaving the sleeping area accessible.
Protective Side Rails
Protective metal side rails are installed on both sides of the bed to enclose the sleeping area. The side rails can be handled when providing care or when transferring the patient to or from the bed.
The bed also includes PE head and footboards. Each board has integrated openings that can be used as handles when positioning or moving the bed.
Castors for Mobility
The bed is supported by four swivel castors, each measuring 5 inches. The castors allow the bed to be moved within the patient’s room or care area and make it easier to access different sides of the bed.
The metal frame is designed to support a maximum user weight of 175 kg. The bed has a net weight of 78 kg and a gross packed weight of 86 kg.
Sectional Mattress
The mattress consists of multiple sections that correspond with the moving parts of the bed. The mattress sections move together with the backrest, thigh section, calf section, and lateral turning mechanism.
Some mattress sections can be removed to access the commode opening or the designated positions for the hair and foot washing basins. The sections can then be returned to their original positions after use.
IV Pole and Information Card Holder
The bed includes an IV pole that can be installed in the designated mounting position on the bed frame. It also features a holder for a patient information or identification card near the end of the bed.
Main Product Features
- Manual operation without electricity or batteries
- Maximum weight capacity of 175 kg
- Backrest adjustment up to 80°
- Thigh section adjustment up to 40°
- Calf section adjustment up to 55°
- Lateral turning function up to 40°
- Integrated commode opening and container
- Hair washing function while the patient remains in bed
- Foot washing function while the patient remains in bed
- Multifunctional sectional mattress
- Removable overbed dining table
- IV pole
- Protective side rails
- Four 5-inch castors
- A3 cold-rolled steel frame
- White powder-coated frame surface
- Suitable for home care and nursing facilities
Product Applications
The Multifunctional Manual Home Care Bed can be used for elderly care, long-term bed care, limited-mobility care, and patient recovery periods. It is suitable for homes, elderly care centres, rehabilitation facilities, nursing centres, and medical care settings.
The bed combines adjustable back and leg positioning, lateral turning, meal support, commode access, and hair and foot washing functions in one unit. Its manual operating system makes these functions available without depending on electricity.
Package Components
- Main metal bed frame
- Multifunctional sectional mattress
- Headboard and footboard
- Protective side rails
- Removable overbed dining table
- IV pole
- Commode container
- Washing basin
- Manual adjustment cranks
- Four 5-inch castors
- Patient information card holder
Frequently Asked Questions
What are the brand and model of the bed
The brand is DAHOO, the model is DH2A43FJ, and the manufacturer is Dahao Medical.
What is the country of origin
The bed is manufactured in China.
Is the bed electric
No. The bed is operated manually using adjustment cranks and does not require electricity or batteries.
What is the maximum weight capacity
The maximum weight capacity of the bed is 175 kg.
What are the overall dimensions of the bed
The bed measures approximately 210 cm in total length, 97 cm in total width, and 49 cm in total height.
What are the sleeping platform dimensions
The sleeping platform measures approximately 190 cm in length and 90 cm in width.
Can the patient’s back be raised
Yes. The backrest can be raised gradually to an angle of up to 80 degrees.
Can the leg position be adjusted
Yes. The thigh section can be adjusted to an angle of up to 40 degrees, while the calf section can be adjusted to an angle of up to 55 degrees.
Does the bed have a lateral turning function?
Yes. The bed provides lateral turning at an angle of up to 40 degrees.
Does the bed include a commode function?
Yes. It has an integrated commode opening and a removable container positioned underneath.
Can the patient’s hair be washed while they remain in bed?
Yes. The bed supports the use of a dedicated basin for washing the patient’s hair while they remain in bed.
Is there a foot-washing function?
Yes. The bed includes a designated section for installing a foot-washing basin.
Is a mattress included
Yes. The bed includes a sectional mattress designed to move with the adjustable bed sections and support its various functions.
Does the bed include an overbed table
Yes. It includes a removable overbed dining table that extends between the side rails.
Can the bed be moved
Yes. The bed is equipped with four swivel castors, each measuring 5 inches.
What is the bed frame made from
The frame is manufactured from A3 cold-rolled steel and finished with a white powder coating.
How much does the bed weigh
The bed has a net weight of 78 kg and a gross packed weight of 86 kg.
