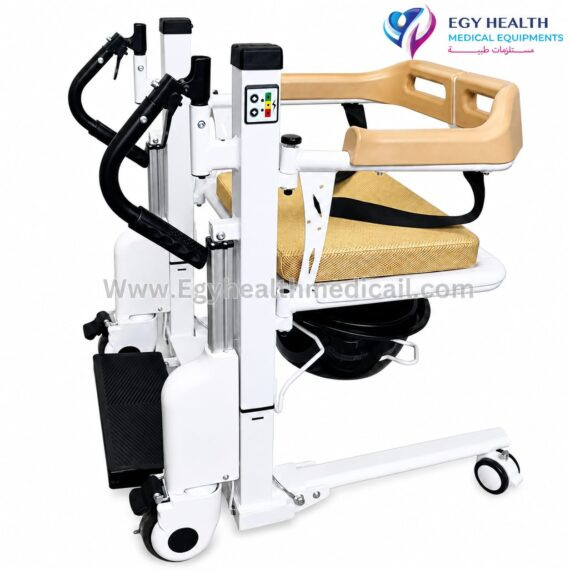

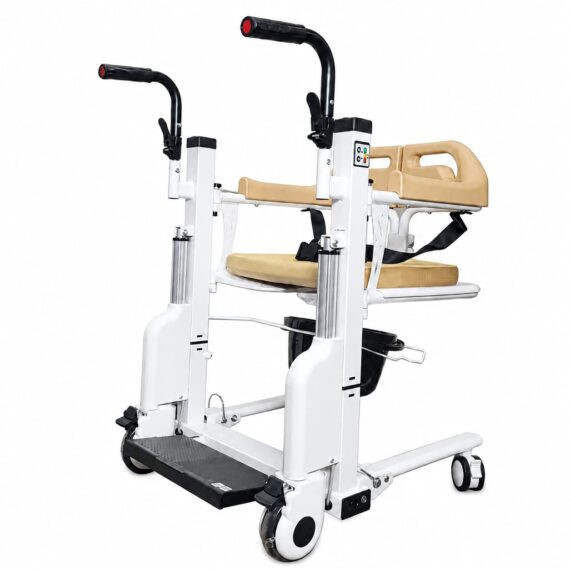

Electric Patient Transfer Chair 120kg

Description

Electric Patient Transfer Chair 120kgTransferring a patient or elderly person from a bed to a wheelchair, chair, or toilet can be difficult, especially when manual lifting is required. The DH0118 Electric Patient Transfer Chair is designed to make these daily transfers easier by providing an electric lifting and lowering system that helps position the seat at a suitable height.

The chair is suitable for use at home, in care centers, and in hospitals. Its practical design combines electric height adjustment, a wireless remote control, locking wheels, a side-opening seat, and a detachable potty, making it a versatile solution for patient transfers and toileting.

Electric Seat Lifting and Lowering System

One of the main advantages of the DH0118 is its electric lift system. The seat height can be adjusted from 44 to 69 cm, allowing the chair to be positioned according to the transfer situation.

The electric system can help reduce the physical effort required when moving a patient between different seating levels.

The chair can be controlled using two options:

• Integrated side controller
• Wireless remote control

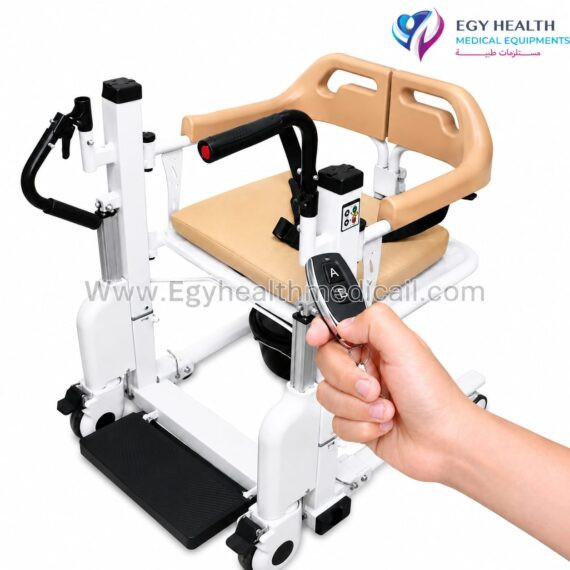

The remote control is simple to operate:

• Button A: Raises the seat.
• Button B: Lowers the seat.

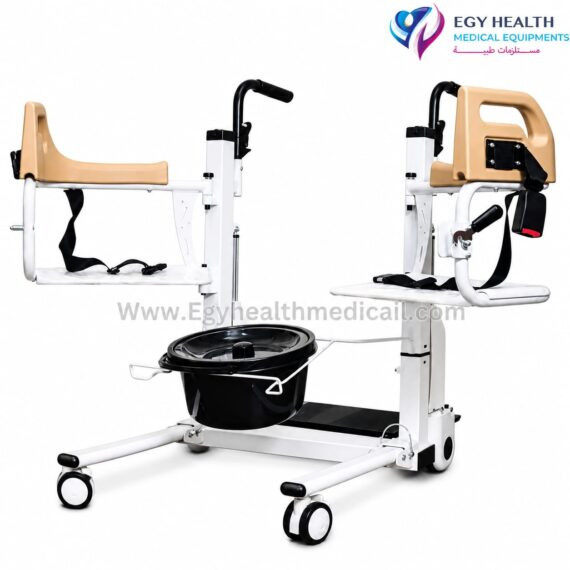

Side-Opening Seat and Safety Lock

The DH0118 features side-opening seat sections that can make patient positioning and transfers more convenient. The design is particularly useful when transferring a person between the bed and the chair.

A safety lock is included to help keep the seat securely closed during movement. Before moving the chair, make sure the safety lock is properly engaged.

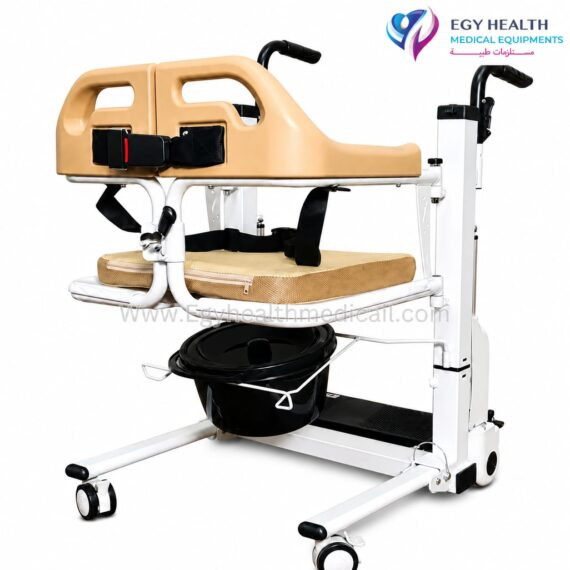

Detachable Commode for Toileting

The DH0118 can also be used as a commode transfer chair. It includes a detachable potty and holder, allowing the user to access toilet facilities without requiring a separate transfer to a standard toilet in every situation.

This feature can be particularly practical for home care and situations where transferring the patient multiple times may be difficult.

Locking Wheels and Practical Design

The chair is equipped with front and rear wheels designed to support smooth movement on suitable, level surfaces.

The wheels can be locked when the patient is sitting down, getting out of the chair, or when the seat height is being adjusted. Always lock the wheels before performing these actions.

The chair also includes a footrest and a mounting point for an IV pole. The IV pole itself is not included with the product.

Rechargeable Built-In Battery

The DH0118 comes with a built-in rechargeable battery, allowing the electric lifting system to operate without requiring manual adjustment.

A battery indicator helps the user monitor the battery status.

During charging:

• Orange light: The battery is charging.
• Green light: The battery is fully charged.

For the first charge, approximately 4–6 hours is recommended. Do not leave the battery charging for more than 12 hours.

Technical Specifications

?Where Can the DH0118 Be Used

The DH0118 Electric Patient Transfer Chair can be used in different care environments, including:

• Homes
• Hospitals
• Elderly care facilities
• Patient care centers
• Healthcare and rehabilitation environments

It is designed for transferring patients between the bed, chair, and toilet while reducing the need for manual lifting.

?What Is Included in the Package

The package includes:

• Chair frame
• Seat sides and backrest
• Potty and potty holder
• Seat cushion
• Built-in rechargeable battery
• Battery charger
• Wireless remote control
• Assembly tool kit
• User manual

Note: The IV pole is not included. The chair only includes the mounting point for an IV pole.

Safety Instructions

For safe operation, follow these important instructions:

1. Lock the wheels before the patient sits down or exits the chair.
2. Make sure the safety lock is properly closed before moving the chair.
3. Lock the wheels before adjusting the seat height.
4. Use the chair only on smooth and level surfaces.
5. Do not use the chair on stairs.
6. Make sure the patient’s weight does not exceed the maximum capacity of 100 kg.
7. Check the battery level before using the electric lifting system.
8. Follow the instructions provided in the user manual.

Frequently Asked Questions

?What is the maximum user weight

The maximum recommended user weight is 100 kg.

?Is the DH0118 electrically operated

Yes. The chair features an electric lifting and lowering system.

?Does it come with a remote control

Yes. The DH0118 includes a wireless remote control as well as an integrated side controller.

?What is the seat height range

The seat height can be adjusted from 44 to 69 cm.

Can it be used to transfer a patient from a bed?

Yes. It is specifically designed to help with transfers between the bed, chair, and toilet.

?Does the chair include a commode

Yes. It includes a detachable potty and holder.

?Is the IV pole included

No. The chair has an IV pole mounting point, but the IV pole itself is not included.

?Does it have a battery indicator

Yes. The chair includes a battery indicator to help monitor the charging status.

?Can it be used on stairs

No. The chair should only be used on suitable, smooth, and level surfaces.

?What is the warranty period

The DH0118 comes with a 1-year warranty.

Conclusion

The DH0118 Electric Patient Transfer Chair is a practical solution for patients and elderly individuals who need assistance when moving between the bed, chair, and toilet. Its electric seat adjustment, wireless remote control, side controller, detachable commode, locking wheels, rechargeable battery, and adjustable 44–69 cm seat height make it suitable for a variety of patient-care environments.

With its practical design and multiple functions, the DH0118 can help make daily patient transfers more convenient while reducing the physical effort required for manual lifting.
